Big Forging Rings for Winder Power, Bearing, Forged Rings, Gear Rings
forging rings for winder power, bearing, forged rings, gear rings
precision forging CNC machining hardware customized hot mould forging, close dia forging for different industry brass copper forging aluminum forging
hardware customized hot mould forging, close dia forging for different industry
forging sleeve, spool, tube sheet, rudder shaft, rings
forging flange, rings, shaft, Tee, block, gear, gear rings, gear shaft for wind power
forging rings for winder power, bearing, forged rings, gear rings
Specifications
1) forging rings for winder power, bearing, forged rings, gear rings
2)1.6587, 18CrNiMo7-6, 4130,4140,4317,4142,4340,UNS440,25Cr2Ni4MoV
3)Max weight: 60T
forging rings for winder power, bearing, forged rings, gear rings
Detailed Description:
1) Product Name: Forged rings, ring rolling, Forging ring
2) Material: 1.6587, 18CrNiMo7-6, 4130, 4140, 4317, 4142, 4340, UNS440, 34CrNi3Mo, 25Cr2Ni4MoV, 18CrNiMo5, 30CrMo, 9Cr2Mo, 9Cr2W, 9Cr3Mo, 60CrMoV etc.
3) Max weight: 60ton.
4) MOQ: small quantity is acceptable.
5) FOB Port: Shanghai, China.
6) Delivery Time: 60ton in 45 days.
7) Delivery Condition: Rough Machined, Heat Treated, Fine Machined + EN10204: 3.1B
8) Payment: T/T or L/C.
Mill Frequently Used Steel Materials:
1) Wind Power Shaft: 42CrMo4V, 34CrNiMo6; Wind Power Flange: S355NL, C22, 16Mn, 20Mn, 42CrMo, F304.
2) Forged Pipe Fittings: SA106 CL B, SA106 CL C, WB36, 12Cr1MoV, SA335 P11, P12, P22, P91, SA182 Gr.F1, Gr.F5, Gr.F11 CL2, Gr.F12 CL2, Gr.F22 CL3, SA350 Gr.LF1, Gr.LF2,
Gr.LF3.
3) Pressure Vessel Forgings: SA105, SA350 LF2, 16Mn, 20MnMo, 15MnMo, 12Cr2Mo1, 14Cr1Mo, F304, F316, 17-4PH.
4) Shaft Related Forgings: 25CrMo4, 42CrMo4, 40CrNiMo, 34CrNi3Mo, 25Cr2Ni4MoV, 18CrNiMo5, 30CrMo, 4130, 4140.
5) Gear Related Forgings: 35CrMo, 34CrMo4, 4137, 42CrMo, 4140, SCM440, 20CrMnMo, 40CrNiMo, 20CrNi2Mo, 20Cr2Ni4A, 34CrNi3Mo.
6) Copper Forgings: C10100, C10200, C10300, C10700, C12000, C12200.

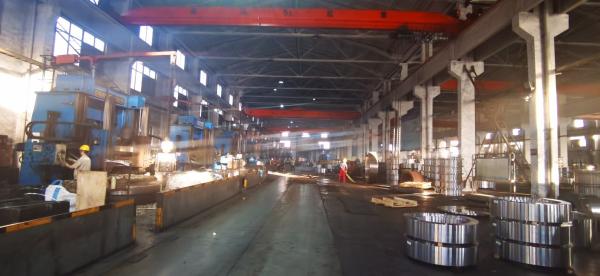

Forging & Heat Treatment Equipment List
| Name & Description | Forging Handling Capacities | Quantity |
| 3150 Tons Free Forging Press | Max. Single Forging in 28 Tons | 1 |
| 5000mm Diameter Rolling Forging Machine | Max. Single Forging in 16 Tons | 1 |
| 800 Tons Free Forging Press | Max. Single Forging in 7.5 Tons | 1 |
| 60 Tons Forging Handling Operator | Max. Single Forging in 45 Tons | 1 |
| 10 Tons Forging Handling Operator | Max. Single Forging in 7.5 Tons | 1 |
| 80 Tons Crane | Max. Single Ingot in 80 Tons | 1 |
| 60/30 Tons Crane | Max. Single Ingot in 60 Tons | 1 |
| 30/10 Tons Crane | 30/10 Tons | 4 |
| Trolley Heat Furnace | 5000*1500*1200 mm | 3 |
| Trolley Heat Furnace | 8000*2000*1600 mm | 3 |
| Trolley Heat Furnace | 6500*1500*1200 mm | 3 |
| Vertical Heat Furnac | Ø2500*10000 mm | 2 |
| Total Forging Equipment Quantity | 22 |
Forging Production Flow
-
Enquiry With Drawing In Details
-
Confirm Steel Material, Chemical Compositions, Mechanical Properties, Tolerances
-
Confirm Payment Terms, Order Materials or Check Material in Stock
-
Check Material Chemical Compositions, Material Weight, Dimensions
-
Cut Materials, Record Weight, Pre-Heating For Forging
-
Forging Ratios, Heat Treatment After Forging, Dimension Check
-
Rough Machining, UT Test, Heat Treatment
-
Fine Machining, UT & PT Test, Dimensions Inspection, Mechanical Properties Test
-
Customer Inspection at Site, Packing, Delivery Arrangement
-
Balance Payment Confirmation, Dispatch Forgings or Castings
-
Bill of Loading Confirmation, MTC Dispatch, Customs Clearances
-
Order Accomplished!!!
